Commercial and industrial buildings often face a difficult balance between accessibility and efficiency. Every time a door opens—whether it is a warehouse loading bay, logistic centre, or a distribution center corridor—there is a rapid exchange of indoor and outdoor air. Conditioned air that has been heated or cooled at significant cost escapes, while unfiltered outside air, dust, fumes, insects, or even humidity can rush in. This not only wastes energy but also creates uncomfortable drafts, affects product quality in temperature-sensitive storage, and can compromise cleanliness standards in busy operational areas.
An air door curtain (or air curtain) provides a practical solution by creating a high-velocity stream of air across the doorway. This invisible barrier allows people, trolleys, and vehicles to pass freely while sharply reducing the transfer of heat, contaminants, and pollutants between zones.

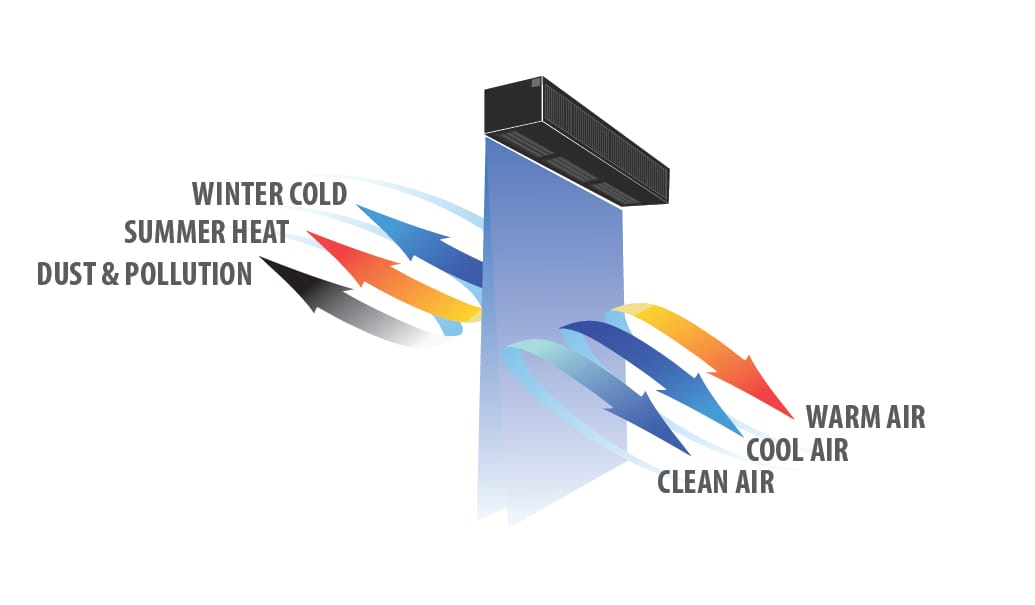

How Air Curtains Work

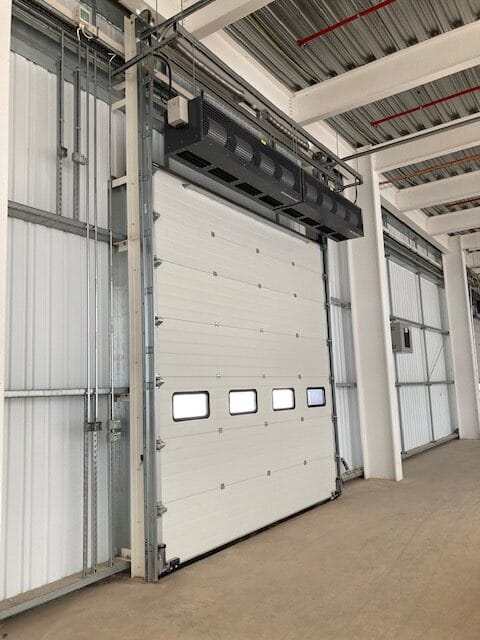

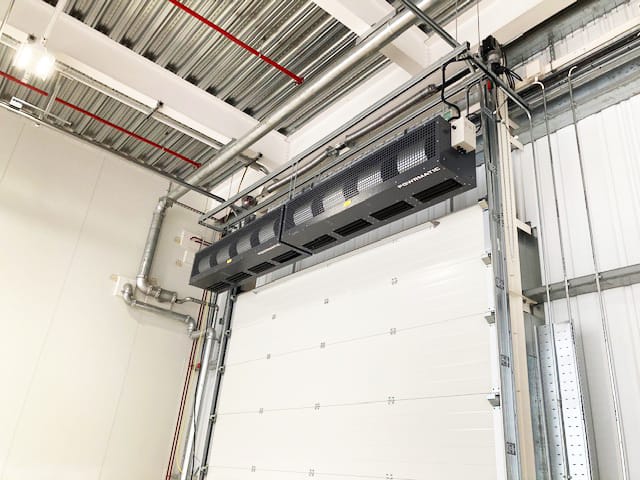

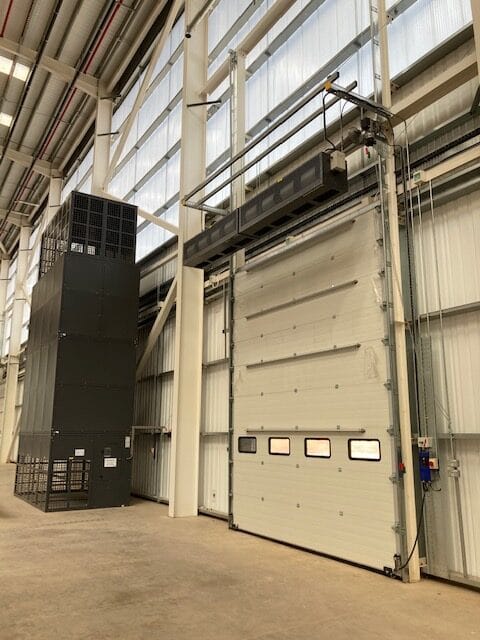

Air curtains are typically installed above a doorway or roller shutter door and use a powerful fan system to blow a continuous sheet of air downward (or sideways). The design ensures uniform velocity across the opening, preventing conditioned indoor air from mixing with outdoor air.
Types of Air Curtains
Air curtains are generally divided into two categories — ambient and heated. Heated air curtains can be supplied by either electric or gas power sources, depending on building requirements and operating costs.
Ambient Air Curtains
- No heating, just a controlled air stream forming the barrier.
- Best for warehouses, logistics centers, and loading bays where the main goal is dust, insect, or fume control.
- Most energy-efficient option since no heating elements are used.
Heated Air Curtains
Heated air curtains are designed to temper the air stream to improve comfort and prevent cold drafts. They can be powered in two main ways:
- Electric-Heated: Use electric heating elements. Electric commerical door curtains are quick to install and suitable for smaller entrances or facilities where electricity is the most practical energy source.
- Gas-Heated: Use a direct gas burner or hot water coil supplied by a gas-fired boiler. Gas Fired Door Curtains are more efficient for large spaces, distribution hubs, and colder climates with frequent door use.
Energy Conservation Benefits
- An unprotected 3m x 3m warehouse opening can lose thousands of kWh of heat annually.
- Air curtains reduce this by 60–80%, helping stabilize interior temperatures.
- Estimated savings are around between 5-15% on energy costs
- Heated air curtains not only reduce infiltration but also add comfort by preventing drafts.
- Many facilities achieve ROI in 1–2 years through reduced HVAC load and energy bills.
Contamination Control
Air curtains also act as a protective barrier against:
- Dust and exhaust fumes – critical in logistics centers and urban warehouses.
- Insects and pests – the high-velocity air stream disrupts entry, making them highly effective in food distribution and processing facilities.
- Cross-zone separation – helps maintain clean areas in industrial operations without solid barriers.
Applications in Commercial and Industrial Spaces

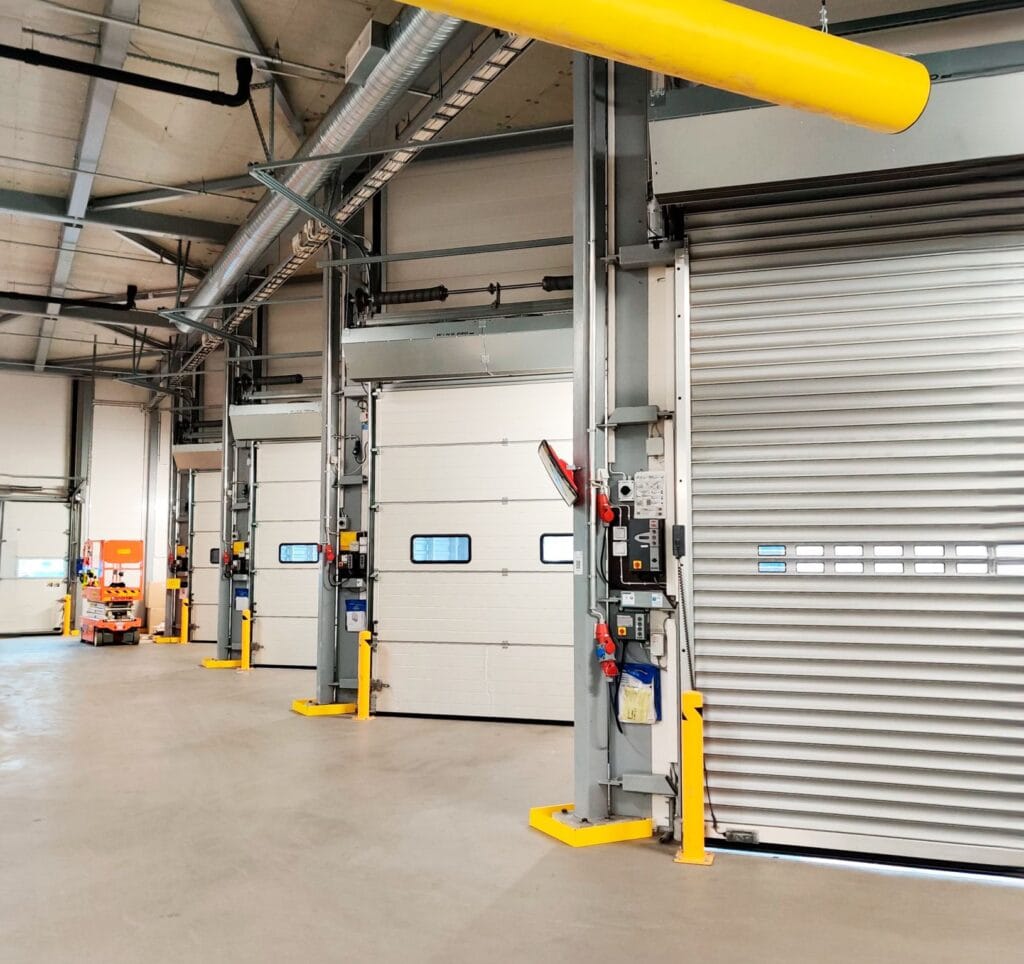

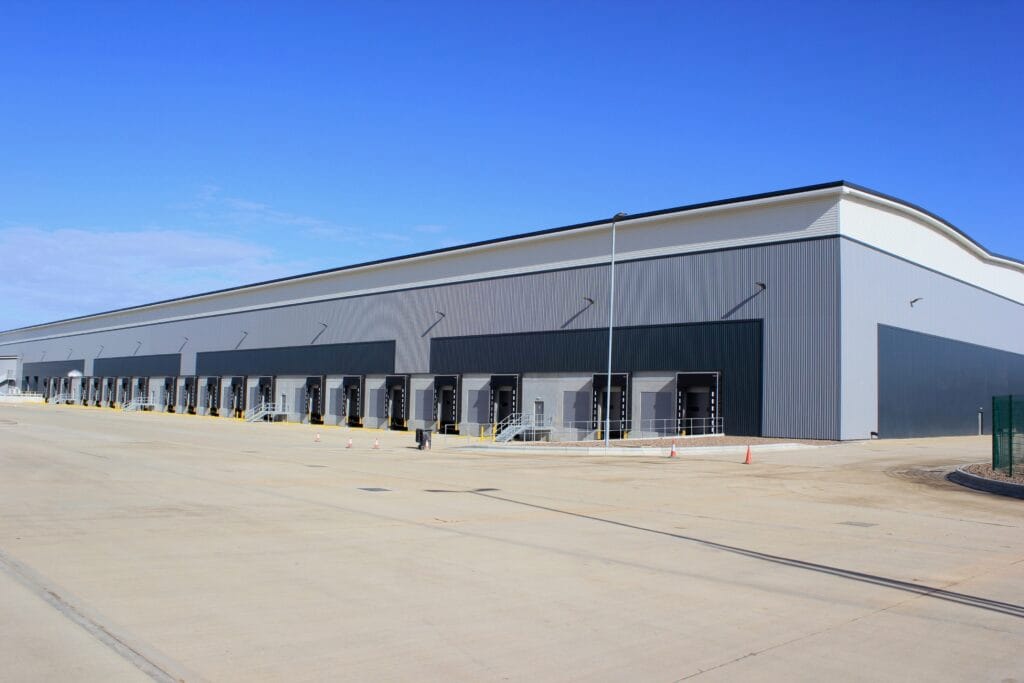

- Logistics Centers & Warehouses – Minimize heat loss through frequently used loading bay doors.
- Cold Storage & Food Distribution – Prevent warm air infiltration, frost, and condensation while protecting against pests.
- Retail-Linked Distribution Hubs – Keep conditioned air inside at customer-facing access points while reducing energy waste.
Operational Advantages
- Unrestricted movement for staff, forklifts, and vehicles.
- Lower HVAC loads, extending equipment life.
- Consistent indoor climate across operational areas.
- Flexible power options (ambient, electric, or gas-heated) tailored to building needs.
Conclusion
Air door curtains are not just accessories—they are engineered systems that reduce energy loss, enhance comfort, and protect indoor environments. Whether ambient or heated (with electric or gas supply), they provide a tailored solution for logistics parks, warehouses, and distribution centers where doors must stay open but efficiency cannot be compromised.
